Beretta web - Pistols 80 Series caliber .32ACP & .380ACP

Unofficial Beretta Site

Beretta open slide Style
  Pistols 80 Series caliber .32ACP & .380ACP banner
DOUBLE AGTION: the double action offers the advantages of the revolver. In the rare instance of misfire due to a faulty primer, it is sufficient to pull the trigger again Io repeat percussion on the same cartridge and fire the round.
Pistols 80 Series caliber .32ACP & .380ACP firing pin safety   Pistols 80 Series caliber .32ACP & .380ACP double action

ALL SAFETY DEVICES: the manual satiety breaks the connection between the trigger and the sear and locks the slide in closed position (A).
First photo: the firing pin is still blocked by the firing pin catch, the firing pin catch lever having not yet been moved by the trigger.
Second photo: the rearward pull on the trigger has moved the firing pin catch lever with the consequent freeing of the firing pin and has produced the discharge of the hammer.

DOUBLE AGTION: the double action offers the advantages of the revolver. In the rare instance of misfire due to a faulty primer, it is sufficient to pull the trigger again Io repeat percussion on the same cartridge and fire the round.

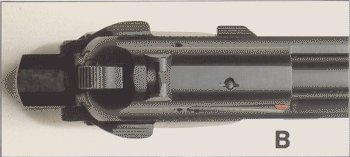

  Pistols 80 Series caliber .32ACP & .380ACP chamber CHAMBER LOADED INDICATOR (mod. 87BB excluded):when there is a cartridge in the chamber, the upper surface of the extractor protrudes and shows red. In the dark the protrusion can be felt by touch Il is never necessary to work the slide to see whether the barrel is loaded (B)

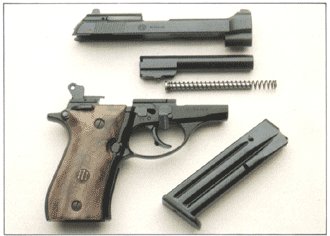

  Pistols 80 Series caliber .32ACP & .380ACP disassembled DISASSEMBLY DEVICE: the disassembly device is designed in such a way as to allow an extremity quick and simple disassembly of the pistol and also lo avoid casual or involuntary disassembly,
Disassembly is very easy: remove the magazine by pressing the disassembly latch release button, rotate the disassembling latch anticlockwise until it stops, The slide barrel assembly with recoil spring and spring guide can now be pulled forward, detached from the frame and consequently disassembled into its component parts.

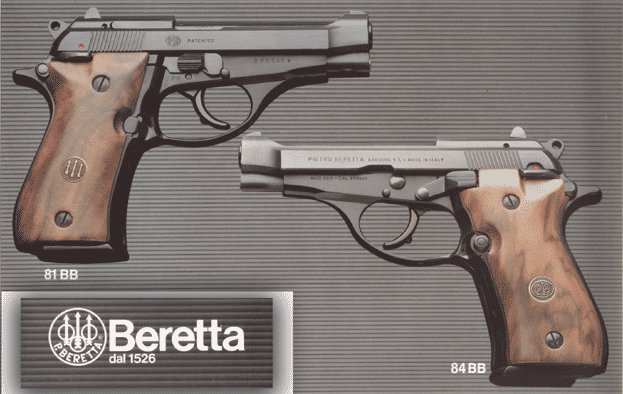

Model - 81BB caliber .32acp 12 rds

Model - 82BB caliber .32acp 9 rds

Model - 84BB caliber .380acp13 rds

Model - 85BB caliber .380acp 8 rds

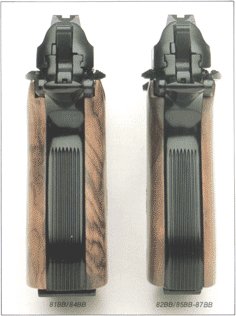

Pistols 80 Series caliber .32ACP & .380ACP single e double stacks

DOUBLE SIDED SAFETY LEVER: allows easier and quicker handling also by left handed shooters.

REVERSIBLE MAGAZINE RELEASE BUTTON (mod. 81BB / 84BB only): can easily be assembled on the right side of the grip, to allow easy handling by left handed shooters.

GROOVED FRAME: the front and back sides of the grip are longitudinally grooved to insure a firm hold even with wet hands or under conditions of rapid, unaided fire.

Specifications


Model 81 BB 84 BB 82 BB 85 BB 87 BB
Caliber 7,65 mm. 9 mm. short 7,65 mm. 9 mm. short .22 L.R.
Operation Semiautomatic, blow - back
Hammer Exposed, double actíon
Length mm. 172
Height mm. 122 mm. 120
Overall width mm. 35 mm. 33
Grip width mm. 35 mm. 30
Weight (with magazine empty) gr. 670 gr. 660 gr. 630 gr. 620 gr. 570
Barrel length mm. 97
Barrel Rifling  R.H., 6 grooves
Rifling pitch mm. 250 mm. 350
Front sight  Blade, integral with slide
Rear sight Notched bar, dovetailed to slide
Une of sight mm. 124
Safeties Features Manual safety breaking the connection between
  the trigger and sear and locking slide in closed position
  Automatic firing pin safety - Inertia operated firing pin
  Half-cock position.
Magazine Staggered Single line
Magazine Capacity 12 shots 13 shots 9 shots 8 shots
Frame Light alloy

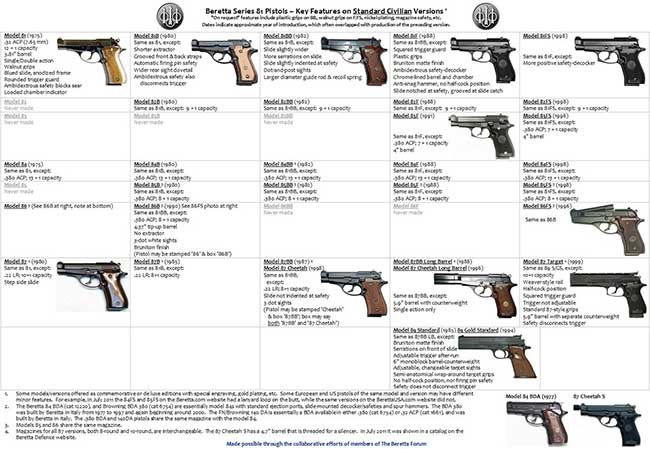

Pistols 80 Series caliber .32ACP & .380ACP family

Chart published by The Beretta Forum. Used with permission - : Click Here for download hi resoluction image
